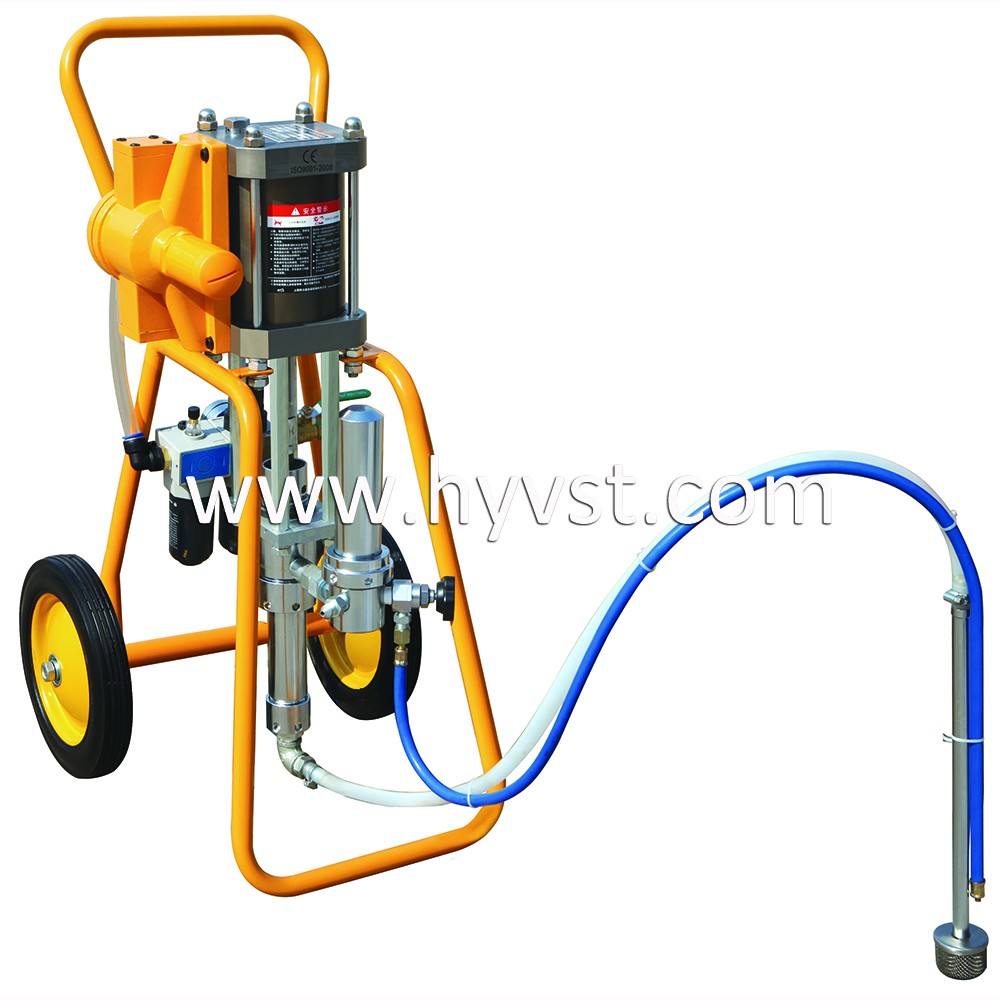

GS30

The craft feature of high pressure airless spraying is higher production efficiency compared with normal spraying gun,closely attached coating layer, it can be sprayed for 100 seconds(No.4 Ford Cup) with the following varied bottom coatings, magnetic coatings, latex coatings for interior and exterior walls and other WB coatings. It is applicable to the colored tile spraying, latex coatings of interior and exterior walls, furniture,steel structure,chemical and industrial equipment,cars trailers, tubing, lifting equipment.

Low Malfunction Ratio

Pressured air as the power,steady and reliable,malfunction ratio is extremely low. The route is long,the exhaust is big,the frequency of switching direction is low,hard to be damaged by friction,the life of the machine and the maintenance cycle extends.

Convenient

GS30 is a type of small car,the structure is close,the movement is convenient.

Quality Coating

Pressure pulsation is small;the coating layer is even,the coating quality is better.

Model Number:GS30

Pressure conversion ratio: 30: 1

No-load displacement: 6L/min;1.58gpm

Inlet pressure: 3-6Bar/0.3-0.6MPa/43.5-87Psi

Air consumption: 180-2000L/min;47.6-528.3gpm

Cylinder diameter: Ф125mm/Ф4.92in

Note: The no-load displacement is the displacement pressure of the coating under

Net weight: 32kgs/70.55lbs (Body weight)

Gross weight: 52kgs/114.6lbs

Package: Wooden Case
Packing size: 62*60*103CM/24.4*23.6*40.5in

Container load quantity: 64sets/20ft, 117sets/40ft, 166sets/40HQ

Warranty: 1-Years Limited Warranty (for main components)

Units include:

· Complete set of airless sprayer

· Airless sprayer gun

· Rotating nozzle

· High-pressure hose（￠6mm X 10m）

· Spare parts supplied by manufacturer
